We can provide the Flocell XFM Fines Filter 900 as a trial unit for on-site evaluation across the UK and export markets. This allows site managers and engineering teams to assess the unit’s performance, integration suitability, and operational benefits under real-world conditions.
Technical Overview
The Flocell XFM series is designed for high-capacity removal of fine suspended solids in industrial and water treatment environments. These filters operate efficiently under variable flow and head conditions, offering a robust alternative to conventional particulate filtration systems.
Arrange a Trial
To request a trial unit or discuss how Flocell can support your process requirements, please contact us.
Effective & Sustainable
Filtration Systems
Millions of carrier elements act like lamella separators reducing water velocity and allowing for the smallest particles to separate out into the media voids. The uninterrupted flow allows for constant and prolonged settlement within the filter pack. The Flocell open cell media allow for high retention capacity so you only need to clean the filter once a month in most applications and save energy because only a small pump is needed or no pump at all on a gravity set-up.
Air Clean Technology
Flocell filters with Air Clean Technology use air rather than wasting water during a traditional backwash cycle. The short air cleaning cycle is done by introducing air into the filter using a low-energy blower or with our patented siphon solution, depending on the application, to agitate the media pack and purge the contained solids. The open cell structure of the Flocell media enables high-retention capacity for extended periods of operation without interruption needed for cleaning. Using air reduces the energy needed and the vast amount of water wasted during cleaning; only the single volume of the filter is discharged and produces a highly concentrated and manageable effluent that infrequently needs to be purged. With Flocell Air Clean Technology, the water and power savings are significant and operation virtually maintenance-free.
XFM Media
Flocell XFM Fines Media has been specifically engineered to optimise the mechanical filtration performance of Flocell XFM Fines Filters. This patented filter media features a unique shape and profile that includes a series of fins around the outer surface to capture fines.
Independently Tested
Flocell open cell media has been independently tested by the IFTS (Institut de la Filtration et des Technique Séparatives) in France and Cranfield University to offer vastly superior performance in terms of retention capacity, retention efficiency, energy consumption and power use.

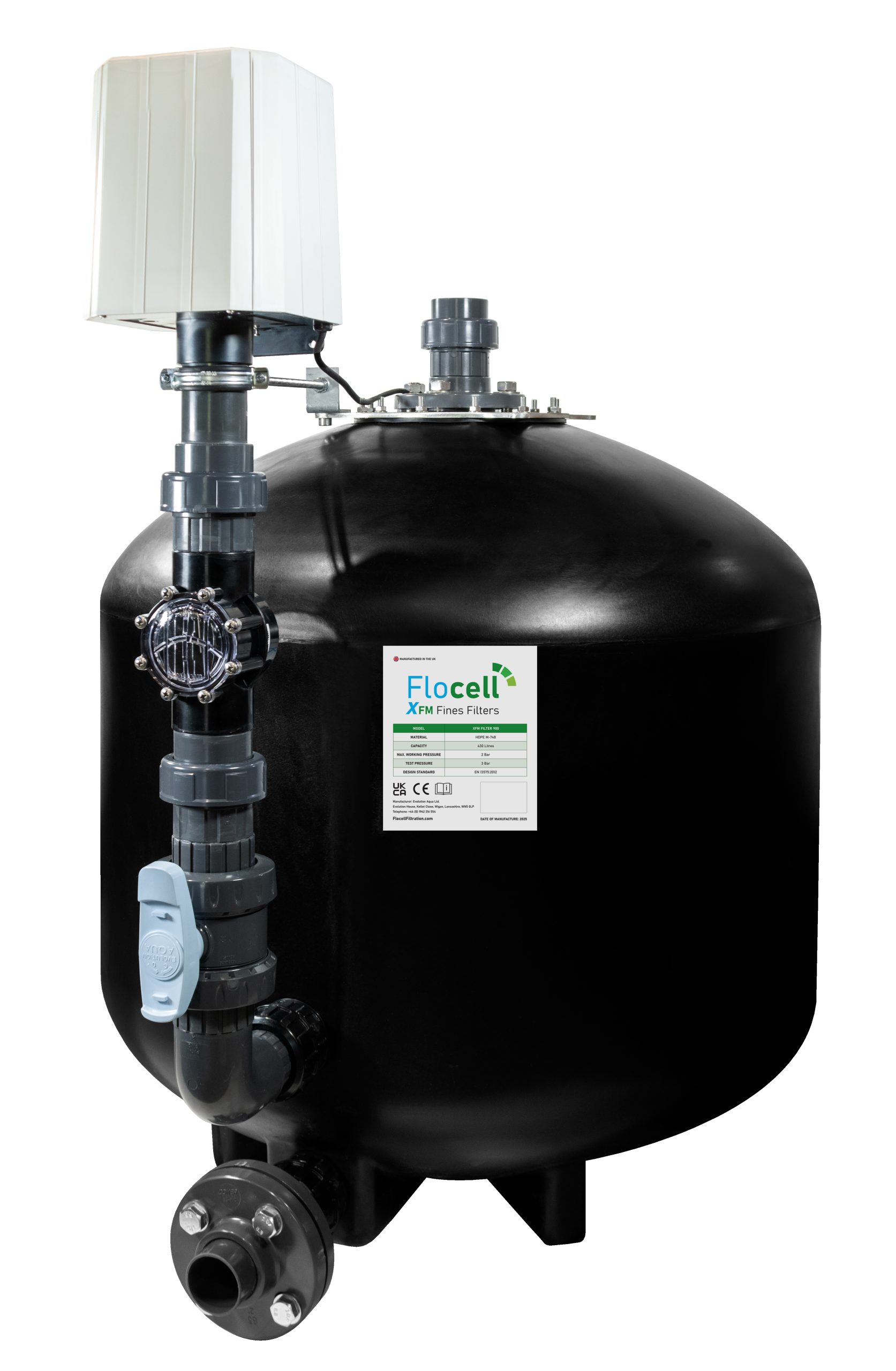

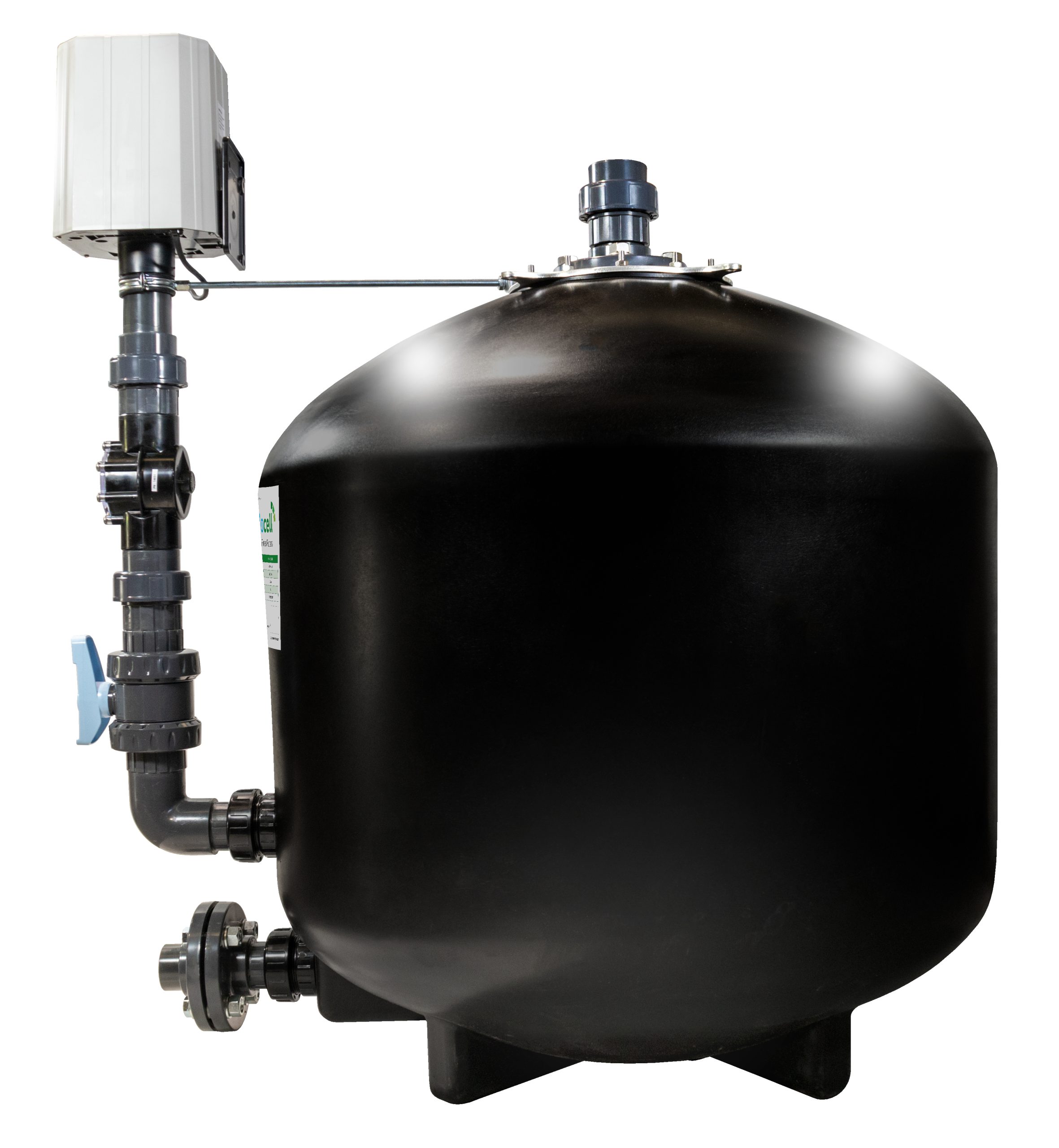

Model: Flocell XFM Fines Filter 900 – Trial Unit

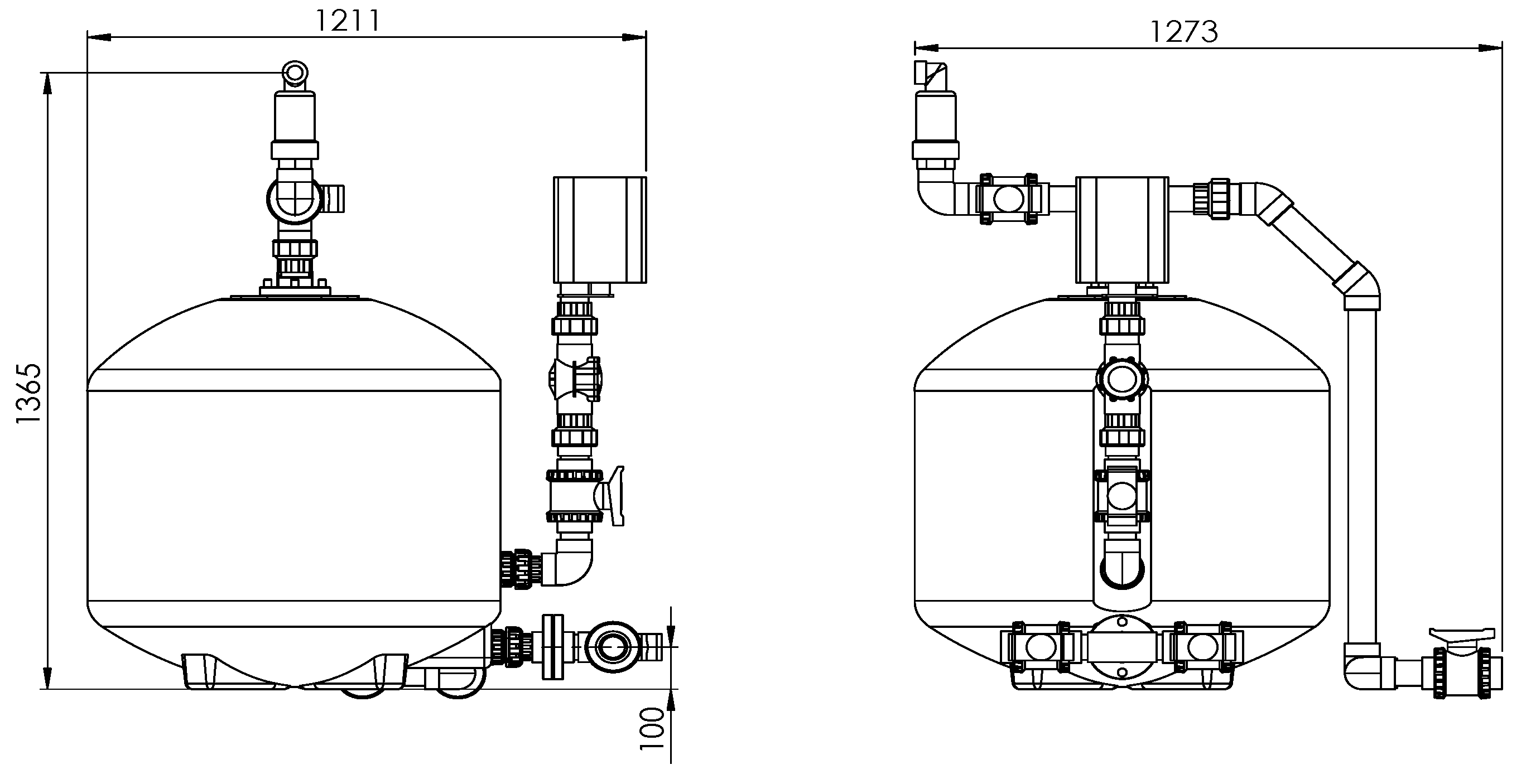

Diameter: 900 mm (36″)
Filtration Area: 0.64 m2
XFM Media Included: 250 litres
Optimal Flow Rate: 16 m3/hr
Max Operation Pressure: 2 Bar
Connection Size: 63 mm (2″)
Flocell provides sustainable filtration solutions for aquaculture, wastewater and other industrial applications.
