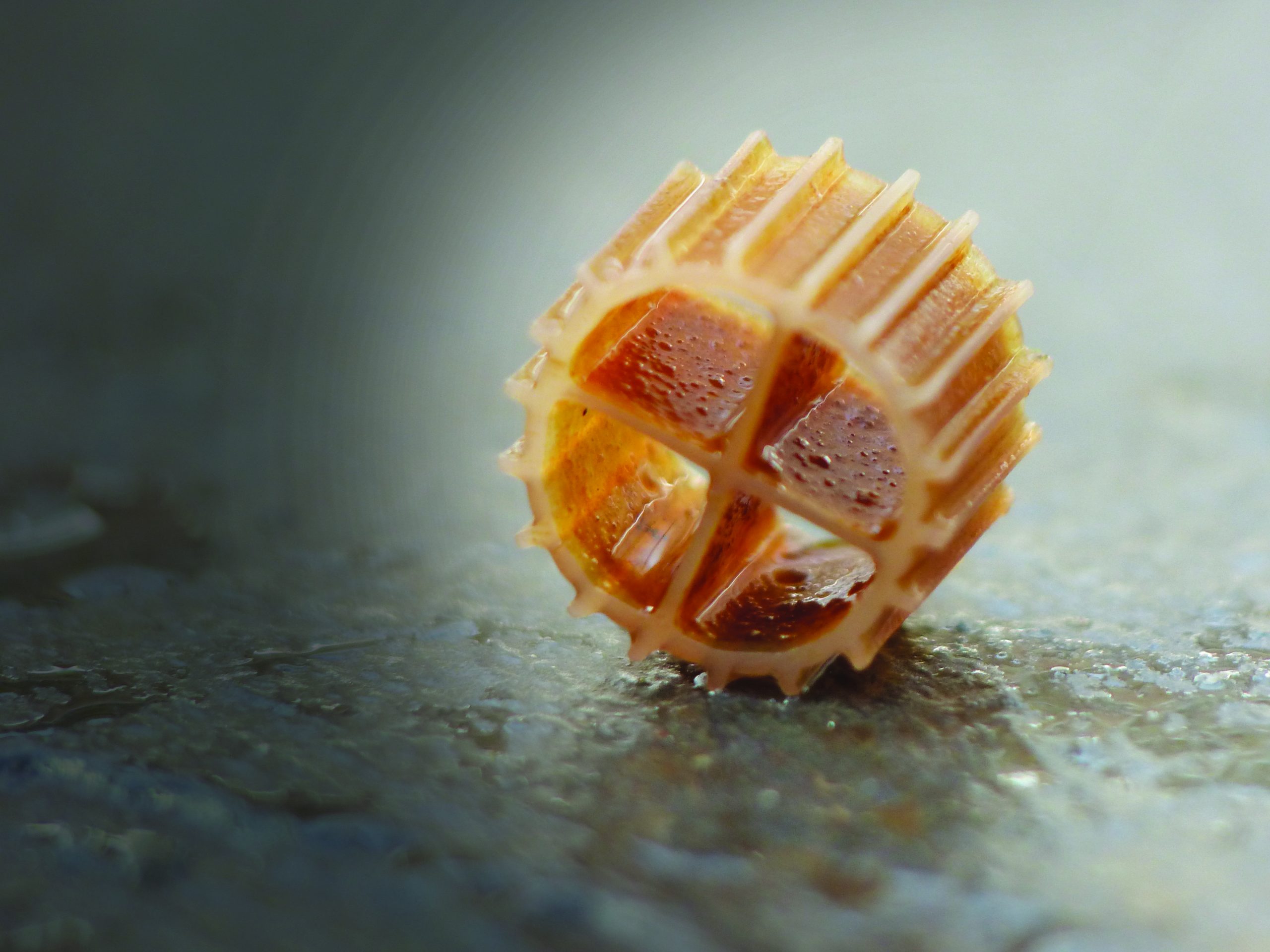

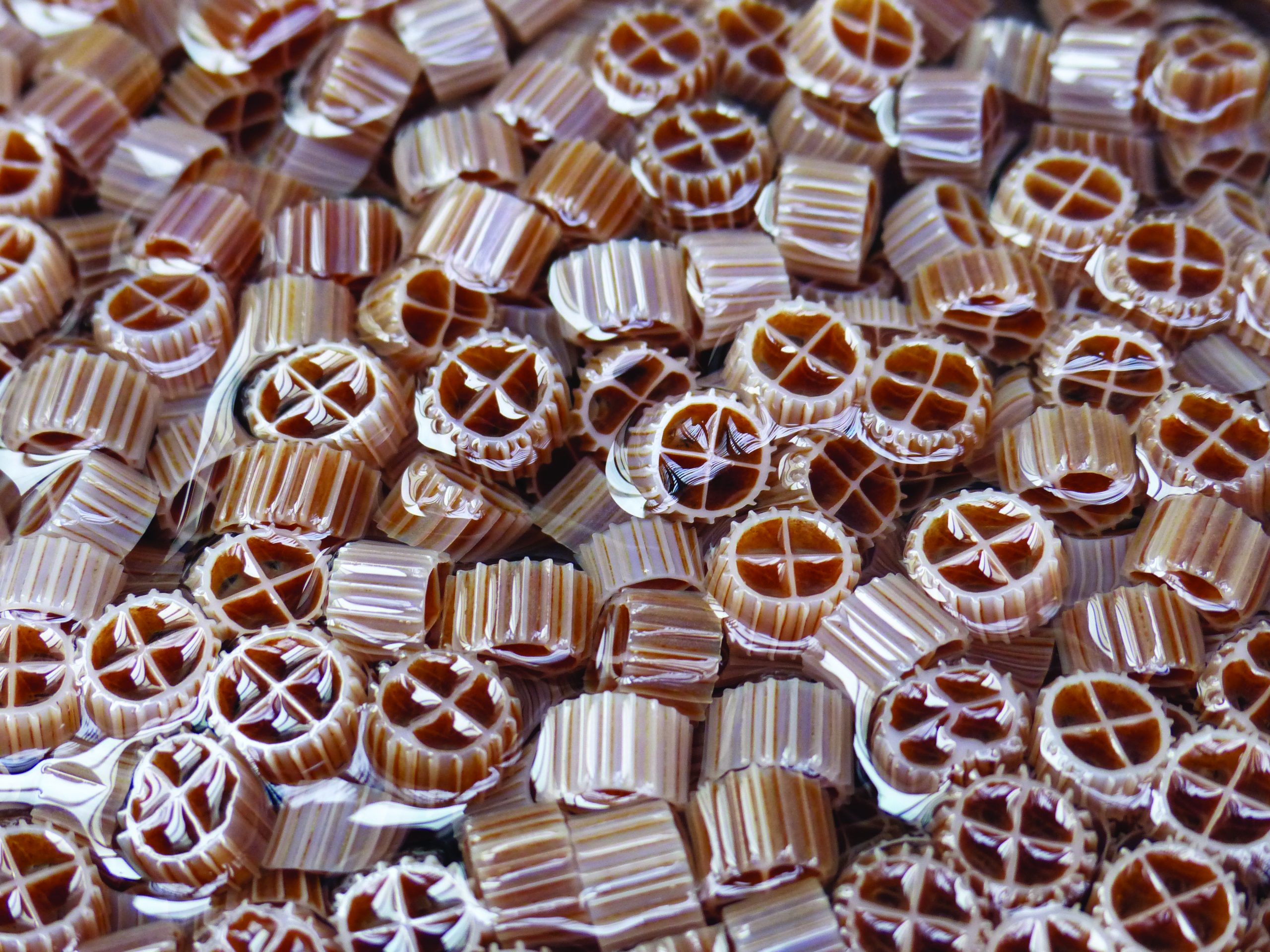

Flocell Bio Media is available in four designs as standard, all manufactured by us in our dedicated UK factory, using 100% virgin materials. It is possible to also design and manufacture your own bespoke biomedia profile in any specific gravity to accommodate fresh or saltwater applications. Our bio media is manufactured to offer rapid biomass development within a protected surface area for both nitrification and denitrification which is vital in biological processes.
Long-lasting

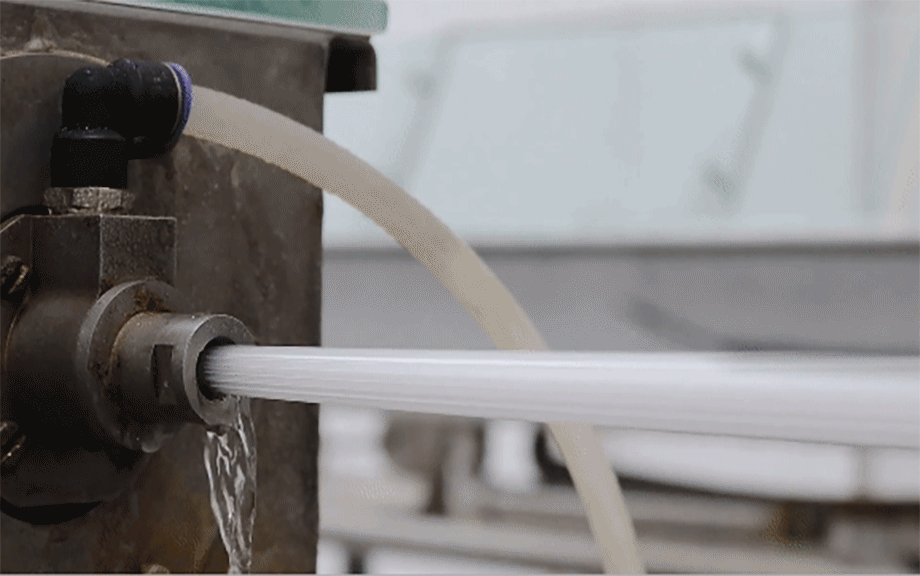

Consistent, high-quality manufacture. Manufactured in the UK by us using 100% virgin material. Will not work harden or degrade.

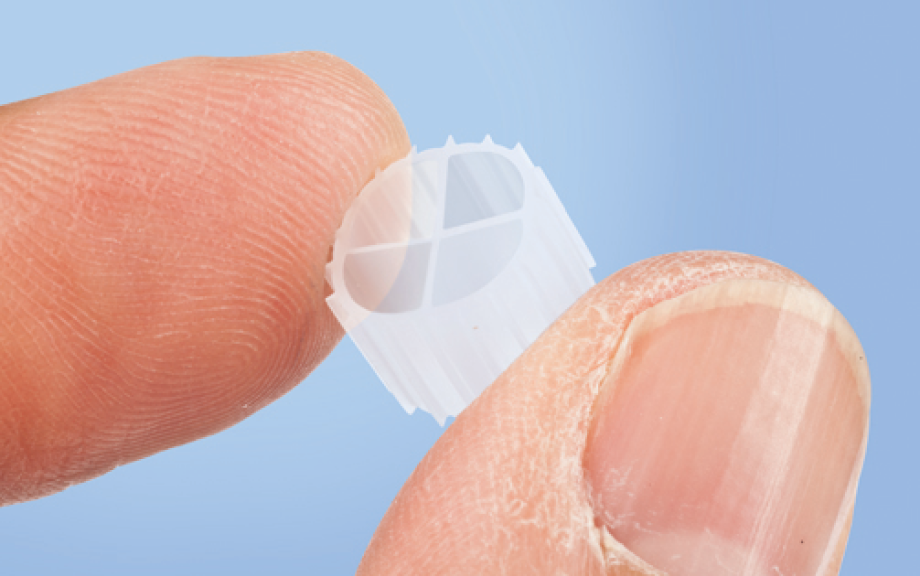

Choice of design

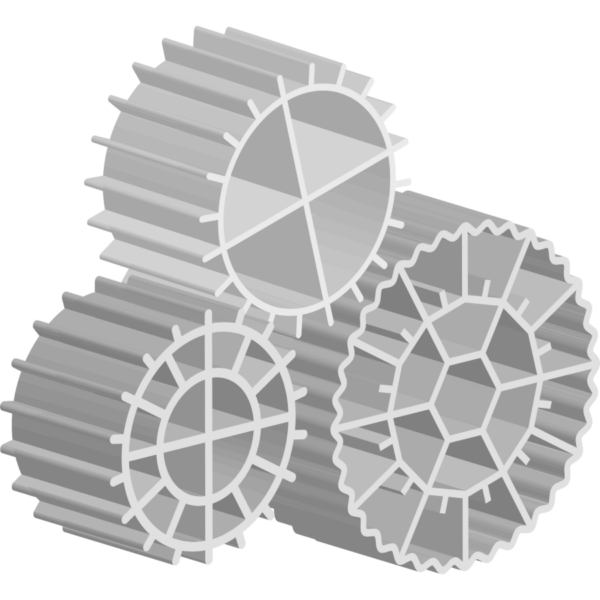

Choice of 4x design to choose from. Bespoke designs are available too on request. Any specific gravity can be accommodated for fresh or saltwater applications. Optimal specific gravity means less energy used.

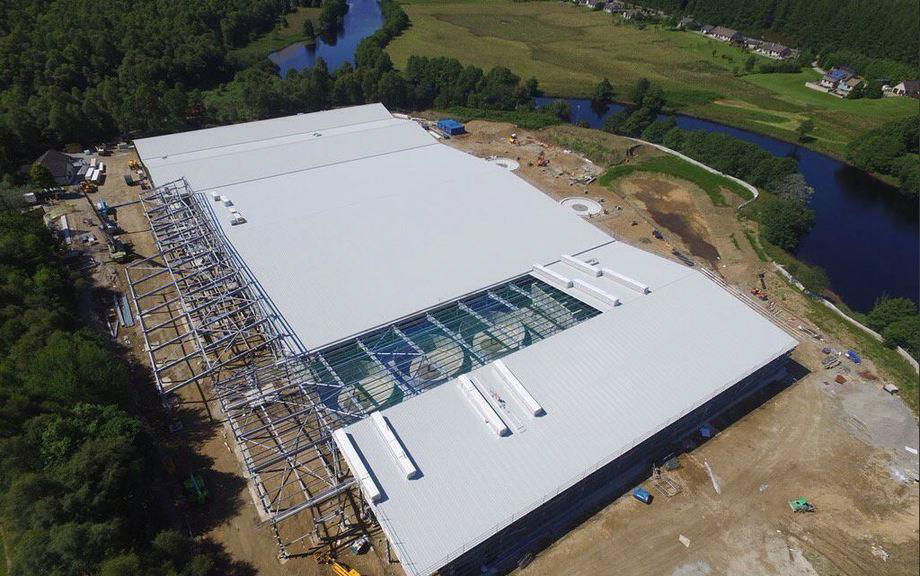

Availability

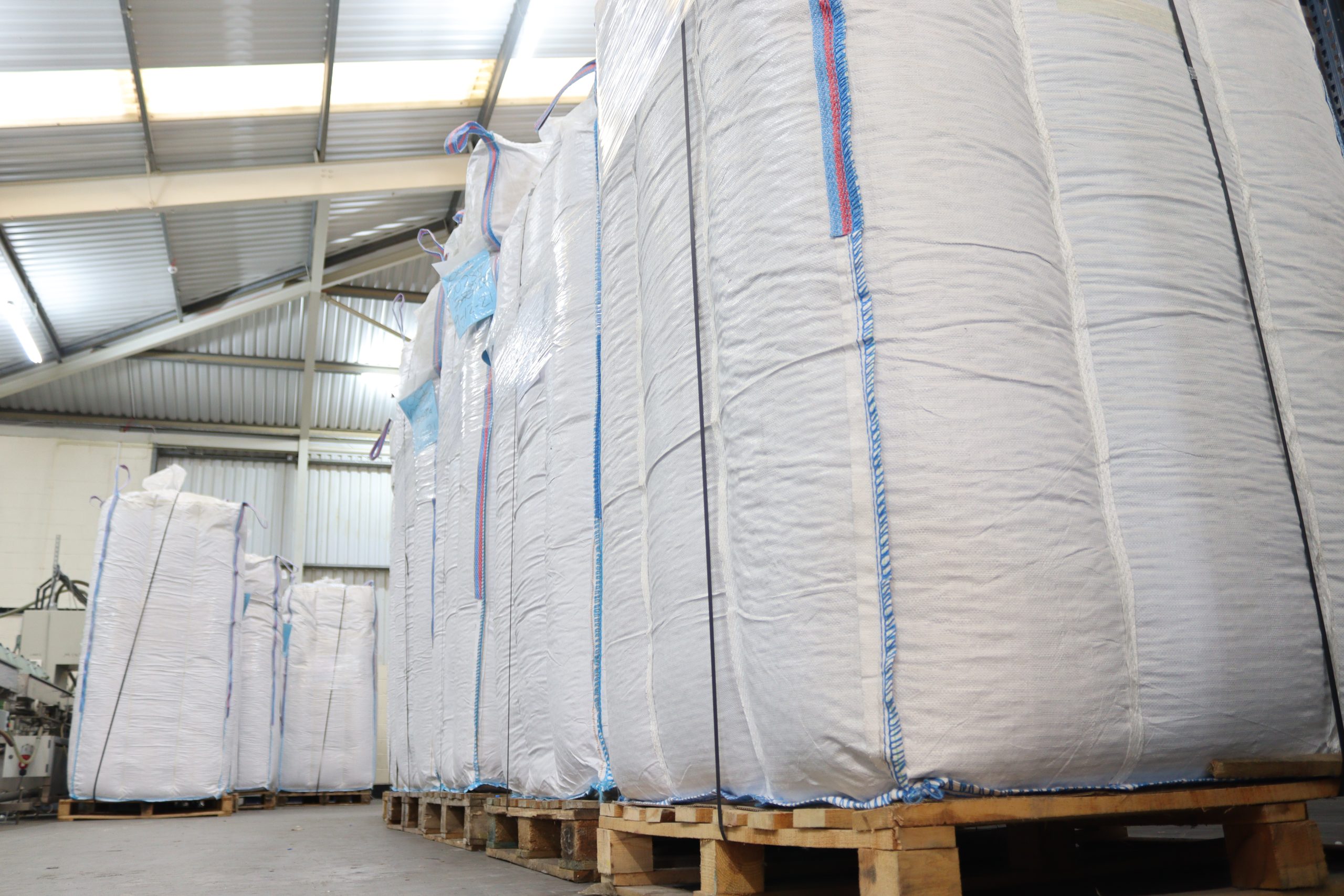

Available for any project size – small or large. From 50-litre bags up to full shipping containers. Bulk shipping in standard 1200 x 1000 pallets with 2.5m3.
Independently Tested
Flocell open cell media has been independently tested by the IFTS (Institut de la Filtration et des Technique Séparatives) in France and Cranfield University to offer vastly superior performance in terms of retention capacity, retention efficiency, energy consumption and power use.
| Model | Basic Diameter | Length | Total Surface Area | Protected Surface Area | Weight per m3 | Color | Buoyancy | Material | Density |
|---|---|---|---|---|---|---|---|---|---|
| BM-1 Media | 10.5mm | 8mm | 950 m2/m3 (+/- 1%) | 500 m2/m3 (+/- 1%) | 120-140kg per m3 | Natural Opaque | Floating | Virgin HDPE | 0.95 kg/l with a tolerance of +/- 0.02 kg/l |
| BM-2 Media | 10.5mm | 8mm | 1,350 m2/m3 (+/- 5%) | 1,025 m2/m3 (+/- 5%) | 175kg per m3 | Natural Opaque | Floating | Virgin HDPE | 0.95 kg/l with a tolerance of +/- 0.02 kg/l |
| BM-3 Media | 25mm | 10mm | 800 m2/m3 (+/- 1%) | 500 m2/m3 (+/- 1%) | 115kg per m3 | Natural Opaque | Floating | Virgin HDPE | 0.95 kg/l with a tolerance of +/- 0.02 kg/l |
| BM-4 Media | 10.5mm | 8mm | 1200 m2/m3 (+/- 1%) | 800 m2/m3 (+/- 1%) | 165kg per m3 | Natural Opaque | Floating | Virgin HDPE | 0.96 kg/l with a tolerance of +/- 0.02 kg/l |

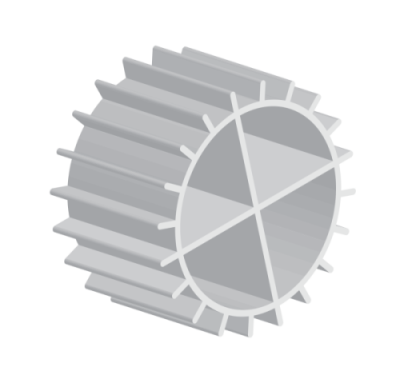

Model: BM-1 Media
Basic diameter: 10.5mm
Length: 8mm
Total Surface Area: 950 m2/m3 (+/- 1%)
Protected Surface Area: 500 m2/m3 (+/- 1%)
Weight per m3: 120-140kg per m3
Colour: Natural Opaque
Buoyancy: Floating
Material: Virgin HDPE
Density: 0.95 kg/l with a tolerance of +/- 0.02 kg/l

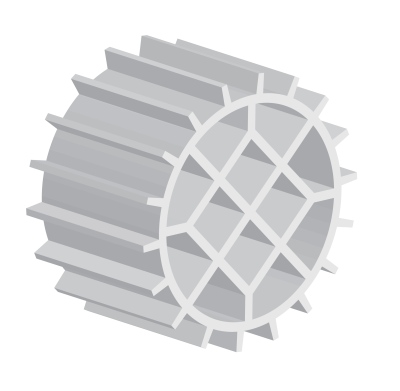

Model: BM-2 Media
Basic diameter: 10.5mm
Length: 8mm
Total Surface Area: 1,350 m2/m3 (+/- 5%)
Protected Surface Area: 1,025 m2/m3 (+/- 5%)
Weight per m3: 175kg per m3
Colour: Natural Opaque
Buoyancy: Floating
Material: Virgin HDPE
Density: 0.95 kg/l with a tolerance of +/- 0.02 kg/l

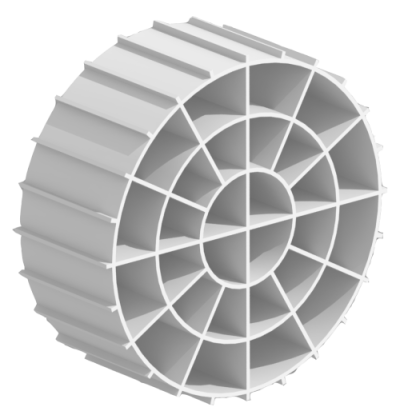

Model: BM-3 Media
Basic diameter: 25mm
Length: 10mm
Total Surface Area: 800 m2/m3 (+/- 1%)
Protected Surface Area: 500 m2/m3 (+/- 1%)
Weight per m3: 115kg per m3
Colour: Natural Opaque
Buoyancy: Floating
Material: Virgin HDPE
Density: 0.95 kg/l with a tolerance of +/- 0.02 kg/l
Model: BM-4 Media
Basic diameter: 10.5mm
Length: 8mm
Total Surface Area: 1200 m2/m3 (+/- 1%)
Protected Surface Area: 800 m2/m3 (+/- 1%)
Weight per m3: 165kg per m3
Colour: Natural Opaque
Material: Virgin HDPE
Density: 0.96 kg/l with a tolerance of +/- 0.02 kg/l
Flocell provides sustainable filtration solutions for aquaculture, wastewater and other industrial applications.
